5.1 任务描述
前置任务：C4-004
业务模块：数据库
创建合约类
任务类型：按步骤操作
5.2 详细实现步骤
5.2.1 支出类型表
为支出类型表创建合约类，类名为ExpenditureType，如下所示：

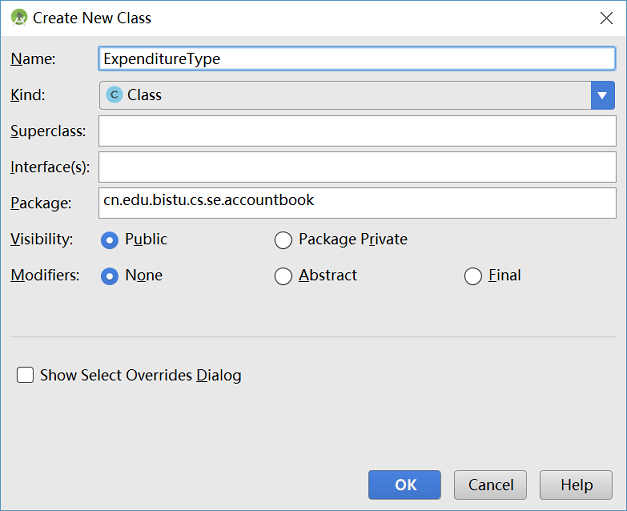

图16 生成ExpenditureType类
Android Studio为我们生成了ExpenditureType类。在生成的类中，我们添加相应字段，并添加1个内部TableAttr类，该类定义了数据库表名、字段名和常用操作SQL语句，该类实现了BaseColumns接口。
修改后的代码如下：
仿照上例，依次为其它三个表添加代码。
package cn.edu.bistu.cs.se.accountbook;
import android.provider.BaseColumns;
/**
* Created by hbs on 2017/11/29.
*/
public class ExpenditureType {
private int id;
private String typeName;
private String note;
public ExpenditureType(int id, String typeName, String note) {
this.id = id;
this.typeName = typeName;
this.note = note;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getTypeName() {
return typeName;
}
public void setTypeName(String typeName) {
this.typeName = typeName;
}
public String getNote() {
return note;
}
public void setNote(String note) {
this.note = note;
}
public static abstract class TableAttr implements BaseColumns {
public static final String TABLE_NAME="expenditure_type";
public static final String COLUMN_TYPE_NAME="type_name";
public static final String COLUMN_NOTE="note";
//增加
public static final String SQL_Insert="insert into expenditure_type(type_name,note) values(?,?)";
public static final String SQL_Insert_Type_name="insert into expenditure_type(type_name) values(?)";
public static final String SQL_Init="insert into expenditure_type(type_name,note) values('餐饮',''),('购物',''),('住房',''),('交通',''),('娱乐',''),('汽车',''),('通讯',''),('零食','');";
//更新
public static final String SQL_Update="update expenditure_type set type_name=?,note=? where _id=?";
public static final String SQL_Update_Type_name="update expenditure_type set type_name=? where _id=?";
//删除
public static final String SQL_Delete_all="delete from expenditure_type";
public static final String SQL_Delete_by_Id="delete from expenditure_type where _id=?";
public static final String SQL_Delete_by_Type_name="delete from expenditure_type where type_name=?";
//查询
public static final String SQL_Select_all="select * from expenditure_type";
public static final String SQL_Select_by_Id="select * from expenditure_type where _id=?";
public static final String SQL_Select_by_Type_name="select * from expenditure_type where type_name=?";
}
}
5.2.2 支出表
类名为Expenditures，代码如下：
package cn.edu.bistu.cs.se.accountbook;
import android.provider.BaseColumns;
import java.util.Date;
/**
* Created by hbs on 2017-11-27.
*/
public class Expenditure {
public Expenditure() {
}
private int id;
private Date accountDate;
private ExpenditureType type;
private int amount;
public Expenditure(int id, Date accountDate, ExpenditureType type, int amount) {
this.id = id;
this.accountDate = accountDate;
this.type= type;
this.amount = amount;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public Date getAccountDate() {
return accountDate;
}
public void setAccountDate(Date accountDate) {
this.accountDate = accountDate;
}
public ExpenditureType getType() {
return type;
}
public void setType(ExpenditureType type) {
this.type = type;
}
public int getAmount() {
return amount;
}
public void setAmount(int amount) {
this.amount = amount;
}
public static abstract class TableAttr implements BaseColumns {
public static final String TABLE_NAME = "expenditure";
public static final String COLUMN_ACCOUNT_DATE = "account_date";
public static final String COLUMN_FK_TYPE = "expenditure_type_id";
public static final String COLUMN_AMOUNT = "amount";
//增加
public static final String SQL_Insert = "insert into expenditure(account_date,expenditure_type_id,amount) values(?,?,?)";
//更新
public static final String SQL_Update = "update expenditure set account_date=?,expenditure_type_id=? ,amount=? where _id=?";
//删除
public static final String SQL_Delete_all = "delete from expenditure";
public static final String SQL_Delete_by_Id = "delete from expenditure where _id=?";
public static final String SQL_Delete_by_Type_id = "delete from expenditure where earning_type_id=?";
public static final String SQL_Delete_by_Type_name = "delete from expenditure where earning_type_id in (select _id from expenditure_type where type_name=?)";
//查询
public static final String SQL_Select_all = "select * from expenditure";
public static final String SQL_Select_by_Id = "select * from expenditure where _id=?";
public static final String SQL_Select_by_Type_id = "select * from expenditure where expenditure_type_id=?";
public static final String SQL_Select_by_Type_name = "select * from expenditure where expenditure_type_id in (select _id from expenditure_type where type_name=?)";
public static final String SQL_Select_Sum_By_Date="select sum(amount) from expenditure where account_date=?";
public static final String SQL_Select_Sum="select sum(amount) from expenditure";
}
}
5.2.3 收入类型表
类名为EarningTypes，代码如下：
package cn.edu.bistu.cs.se.accountbook;
import android.provider.BaseColumns;
/**
* Created by hbs on 2017/11/29.
*/
public class EarningType {
private int id;
private String typeName;
private String note;
public EarningType(int id, String typeName, String note) {
this.id = id;
this.typeName = typeName;
this.note = note;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getTypeName() {
return typeName;
}
public void setTypeName(String typeName) {
this.typeName = typeName;
}
public String getNote() {
return note;
}
public void setNote(String note) {
this.note = note;
}
public static abstract class TableAttr implements BaseColumns {
public static final String TABLE_NAME="earning_type";
public static final String COLUMN_TYPE_NAME="type_name";
public static final String COLUMN_NOTE="note";
//增加
public static final String SQL_Insert="insert into earning_type(type_name,note) values(?,?)";
public static final String SQL_Insert_Type_name="insert into earning_type(type_name) values(?)";
public static final String SQL_Init="insert into earning_type(type_name,note) values('薪资',''),('奖金','');";
//更新
public static final String SQL_Update="update earning_type set type_name=?,note=? where _id=?";
public static final String SQL_Update_Type_name="update earning_type set type_name=? where _id=?";
//删除
public static final String SQL_Delete_all="delete from earning_type";
public static final String SQL_Delete_by_Id="delete from earning_type where _id=?";
public static final String SQL_Delete_by_Type_name="delete from earning_type where type_name=?";
//查询
public static final String SQL_Select_all="select * from earning_type";
public static final String SQL_Select_by_Id="select * from earning_type where _id=?";
public static final String SQL_Select_by_Type_name="select * from earning_type where type_name=?";
}
}
5.2.4 收入表
类名为Earnings，代码如下：
package cn.edu.bistu.cs.se.accountbook;
import android.provider.BaseColumns;
import java.util.Date;
/**
* Created by hbs on 2017-11-27.
*/
public class Earning {
private int id;
private Date accountDate;
private EarningType type;
private int amount;
public Earning(int id, Date accountDate, EarningType type, int amount) {
this.id = id;
this.accountDate = accountDate;
this.type = type;
this.amount = amount;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public Date getAccountDate() {
return accountDate;
}
public void setAccountDate(Date accountDate) {
this.accountDate = accountDate;
}
public EarningType getType() {
return type;
}
public void setType(EarningType type) {
this.type = type;
}
public int getAmount() {
return amount;
}
public void setAmount(int amount) {
this.amount = amount;
}
public static abstract class TableAttr implements BaseColumns {
public static final String TABLE_NAME = "earning";
public static final String COLUMN_ACCOUNT_DATE = "account_date";
public static final String COLUMN_FK_TYPE = "earning_type_id";
public static final String COLUMN_AMOUNT = "amount";
//增加
public static final String SQL_Insert = "insert into earning(account_date,earning_type_id,amount) values(?,?,?)";
//更新
public static final String SQL_Update = "update earning set account_date=?,earning_type_id=? ,amount=? where _id=?";
//删除
public static final String SQL_Delete_all = "delete from earning";
public static final String SQL_Delete_by_Id = "delete from earning where _id=?";
public static final String SQL_Delete_by_Type_id = "delete from earning where earning_type_id=?";
public static final String SQL_Delete_by_Type_name = "delete from earning where earning_type_id in (select _id from earning_type where type_name=?)";
//查询
public static final String SQL_Select_all = "select * from earning";
public static final String SQL_Select_by_Id = "select * from earning where _id=?";
public static final String SQL_Select_by_Type_id = "select * from earning where earning_type_id=?";
public static final String SQL_Select_by_Type_name = "select * from earning where earning_type_id in (select _id from earning_type where type_name=?)";
public static final String SQL_Select_Sum_By_Date="select sum(amount) from earning where account_date=?";
public static final String SQL_Select_Sum="select sum(amount) from earning";
}
}
